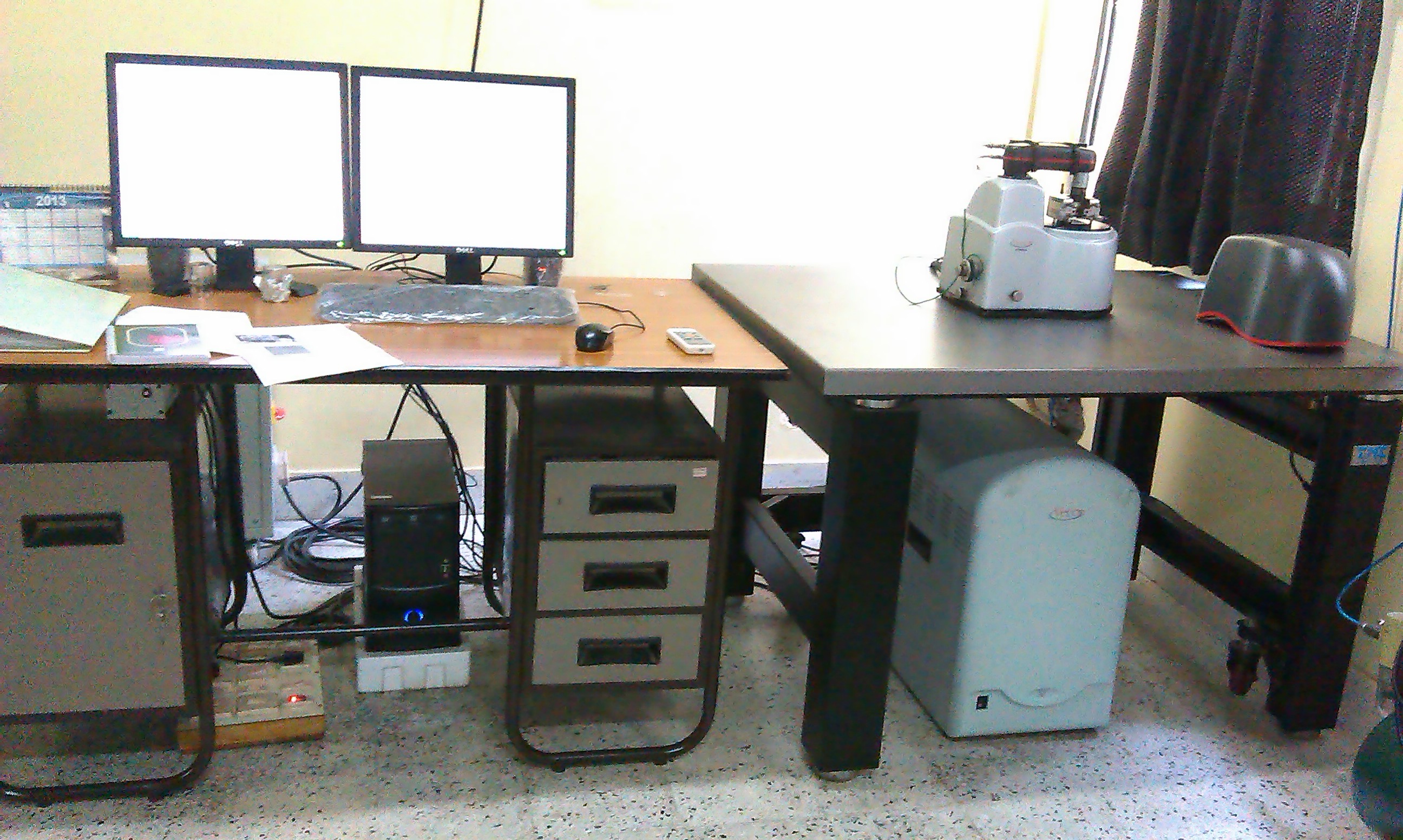

Atomic Force Microscopy (AFM)


Instrument Details



Make:- Bruker  (INNOVA)
Model:-  di INNOVA
System software : NanoDrive v8 real-time control & NanoScope Analysis

Measurement Performance

Standard

Scanner : Large Area(~90μm) piezoelectric scanner.
Large area scanner : XY > 90 μm, Z > 7.5 μm
Closed-loop XY noise : < 1.2 nm RMS, typical imaging bandwidth
Z-Linearizer noise : < 200 pm RMS, typical imaging bandwidth
Open-loop : XY drift < 1 nm/min
Closed-loop : XY drift < 3 nm/min
Optics : 5x motorized zoom, software controlled
10x objective
System software : NanoDrive v8 real-time control & NanoScope Analysis

Operating Environment

Temperature: 0ºC to 30ºC, 32ºF to 112ºF.
Humidity: < 60%; non condensing.

Atomic Force Microscopy (AFM)


Working Principles



Atomic force microscopy is  the most versatile and powerful microscopy technology for studying samples at nanoscale. It is versatile because an atomic force microscope can not only image in three-dimensional topography, but it also provides various types of surface measurements. It is powerful because an AFM can generate images at atomic resolution with angstrom scale resolution height information, with minimum sample preparation.

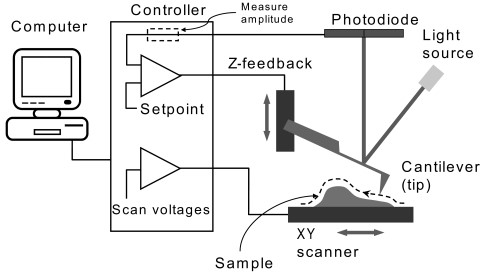

Diagram of atomic force microscope (AFM) system showing feedback control loop with photodiode detection and cantilever-sample interaction.



To obtain an image, a cantilever is scanned over the sample surface. A laser beam is deflected off the back of the cantilever, and changes in deflection are monitored with a photodiode detector.



Applications




Material Science, Condensed matter physics, Nano Science & Nanotechnology, Biological/Chemical Sciences


User Instructions




  1. User Instruction


    Internal S.N.B.N.C.B.S Users:-

    1. User must submit the internal requisition form.
    2. User must submit the requisition duly filled in and signed by their respective supervisors to the.
    3. Users will be allocated definite slots and they submit have to submit their samples accordingly.

    External Users (Other than S.N.B.N.C.B.S):-

    • Users should apply through mail
    • An appointment will be given as per queue and will be informed by email.
    • The users will be informed about the appointment (date & time) by e-mail.
    • It is most desirable that the user is present in the AFM lab at the time of appointment for better utilization of the facility.



Payment Instruction:



  1. A Requisition letter addressing In-charge Technical cell along with
  2. Demand Draft in favour of S. N. Bose National Centre for Basic Sciences."
  3. Cash payment after completion of the expt.
  4. Payment through Debit/Credit Card
  5. Wire transfer details  (see below details)



Contact Us



033 2335 5706/5707/5708, Extension:  263




AFM Charges


University /College [1] National Lab/ R&D Industry[1]
Samples ₹1500/- ₹1500/- ₹2500/-





[1] Per sample per hour whichever is greater (in ₹)



The Demand Draft should be in favour of "S. N. Bose National Centre for Basic Sciences."
Letter, DD & Samples send to "Technical cell, S. N. Bose National Centre for Basic Sciences, Kolkata- 700106




[2] Money Transfer Information:



National Electronic Fund Transfer (NEFT) Details for Money Transfer

  1. Name of the Account Holder: S. N. Bose National Centre for Basic Sciences

  2. Bank Account Number:089302000000220

  3. Type of Account: Current Account

  4. Bank Name: Indian Overseas Bank

  5. Branch Name: Salt Lake City Branch

  6. Complete Address of Branch: Block - EA, Salt Lake City, Sector - 1, opp. Labony Estate, Kolkata - 700064.

  7. IFS Code of the Branch:IOBA0000893
