Spectroscopic Ellipsometer (Ellipsom)


Instrument Details



Make:- JA. WOOLLAM
Model:-  M-2000 (EC-400)



Spectroscopic Ellipsometer (Ellipsom)


Working Principles



Ellipsometry measures a change in polarization as light reflects or transmits from a material structure. The polarization change is represented as an amplitude ratio, Ψ, and the phase difference, Δ. The measured response depends on optical properties and thickness of individual materials. Thus, ellipsometry is primarily used to determine film thickness and optical constants.

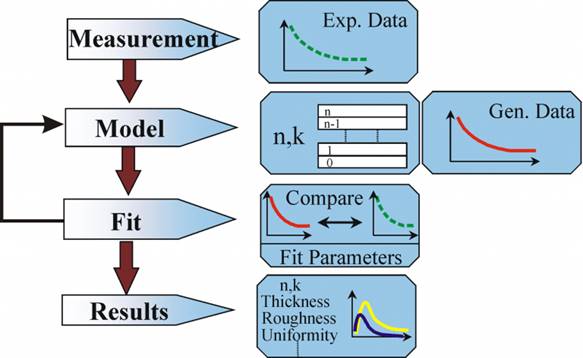

Data analysis workflow diagram showing measurement-model-fit-results cycle with parameter panels for experimental and generated data comparison.


Applications

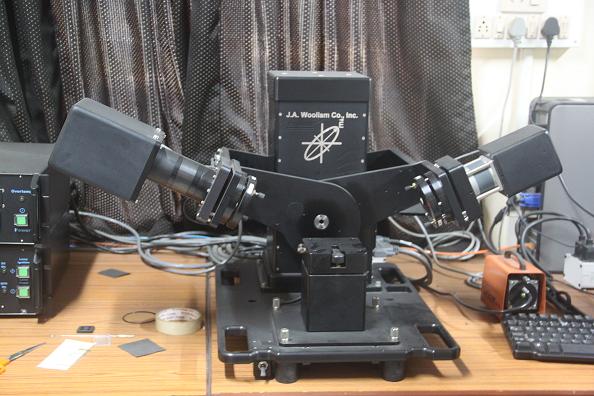

Spectroscopic Ellipsometer: This is WVASE32 system (J. A. Woollam Co. Inc.) primarily used for measurement of the thickness of thin films.


User Instructions



Internal S.N.B.N.C.B.S Users:-

  1. User must submit the internal requisition form.
  2. User must submit the requisition duly filled in and signed by their respective supervisors.
  3. Users will be allocated definite slots and they submit have to submit their samples accordingly.

External Users (Other than S.N.B.N.C.B.S):-

  • Users should apply through mail
  • An appointment will be given as per queue and will be informed by email.
  • The users will be informed about the appointment (date & time) by e-mail.
  • It is most desirable that the user is present in the Ellipsometry lab at the time of appointment.

Payment Instruction:



  1. A Requisition letter addressing In-charge Technical cell along with
  2. Demand Draft in favour of S. N. Bose National Centre for Basic Sciences."
  3. Cash payment after completion of the expt.
  4. Payment through Debit/Credit Card
  5. Wire transfer details  (see below details)
