Pulsed Laser Deposition

  Instrument Details
A)Pulsed  Excimer Laser:

Make: Coherent
Model: Compex Pro
Specification: Wavelength: KrF (248nm), ArF (193nm)
Power: 700mJ (Maximum)
Frequency: 1-10Hz

B)  RHEED
Make: TorrRHEED TM from STAIB instruments, Germany
Model: RH 35
Specification: Wavelength: KrF (248nm), ArF (193nm)
Power: 700mJ (Maximum)

Frequency: 1-10Hz




  Working Principles

Pulse Laser Techniques (PLD) uses high power laser pulses to melt, evaporate and ionize material from the surface of a target. This "ablation" event produces a transient, highly luminous plasma plume that expands rapidly away from the target surface. The ablated material is collected on an appropriately placed substrate upon which it condenses and the thin film grows. Applications of the technique range from the production of superconducting and insulating circuit components to improved wear and biocompatibility for medical applications. In spite of this widespread usage, the fundamental processes occurring during the transfer of material from target to substrate are not fully understood and are consequently the focus of much research.

Description: Pulsed Laser Deposition      In principle PLD is an extremely simple technique, which uses pulses of laser energy to remove material from the surface of a target, as shown schematically on the right.
The vaporized material, containing neutrals, ions, electrons etc., is known as a laser-produced plasma plume and expands rapidly away from the target surface Film growth occurs on a substrate upon which some of the plume material recondenses.












  Applications

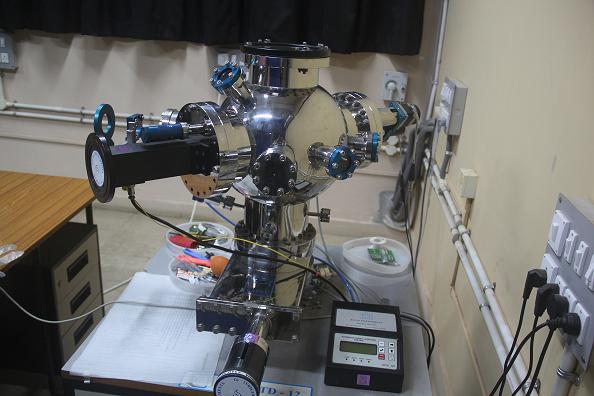

A) This is a Pulsed Excimer Laser based thin film deposition unit. The Excimer laser (Compex Pro made by Coherent Inc.) delivers a maximum of 700 mJ power at the wavelengths of 193 nm (ArF) and 248 nm (KrF) with a repetition rate of 10 Hz. The deposition chamber (Ms. Excel Instruments) is equipped with turbo pump (base 10–7 pressure ~ 10 mbar) and works under various gaseous environments. The substrate can be heated up to 900oC and it has six automated target carousel.

B) The  RHEED Gun in Pulsed Excimer Laser Deposition unit: For in situ analysis of the deposited film by laser ablation at the electron source energy ~ 35 KeV The instrument equipped with double differential pumping arrangement: To maintain pressure difference between the electron gun and the thin film deposition chamber.

          RHEED data analysis software: KSA-400 software
