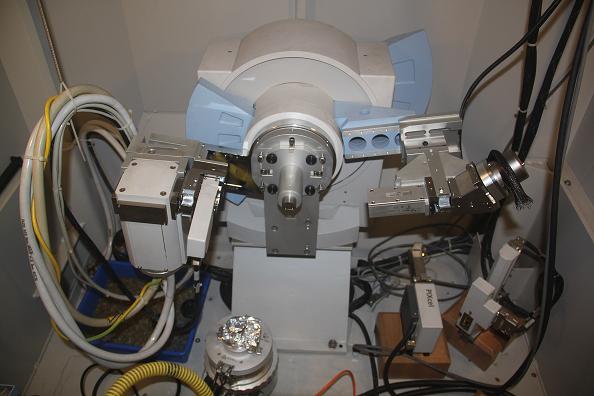

X Ray Diffractometer (X'Pert Pro)


Instrument Details


Make
:Panalytical
Model
: X’Pert Pro
Specification
:

Source of X-Rays: Cu Kα, 1.54 Å. (wave length), Mo Kα, 0.71 Å (Wavelength)
Detector: Pixel detector, Scintillation detector
Sample stage: Fixed, with X-Ray source & Detector rotation.
Sample Holders: Sample holders are made of Aluminum, for powder samples with a volume of 15 mm×20 mm×1.8mm.
Zero background capillaries & fibres
Zero background sample holder is an obliquely cutted silicon crystal which can be used to mount very small amount of powder (< 1 mg).
Measurement range: 5º to 140º
Working condition: 45 KV & 40 mA

X Ray Diffractometer


Working Principles



X-ray crystallography is a technique used for determining the atomic and molecular structure of a crystal, in which the crystalline atoms cause a beam of incident X-rays to diffract into many specific directions.

The image displays a double-slit diffraction diagram showing two light sources S₀ and S₁ with ray paths, labeled angles θ, two parallel horizontal slits with spacing d·sinθ, and interference points A₁, B, and C.
X Ray diffraction is based on Bragg’s law,   2dSinθ=nλ


Applications


     Determining the atomic and molecular structure of a crystal



User Instructions
