Mask Aligner (MJB4)

The MJB4 mask aligner is used for making patterns with the optical lithography process. We have several masks of different patterns. After cleaning, coating with proper photoresists, pre baking the substrate, with the help of this mask aligner the proper patterns are being aligned on the exact needed position & made on the substrate with the UV exposure.

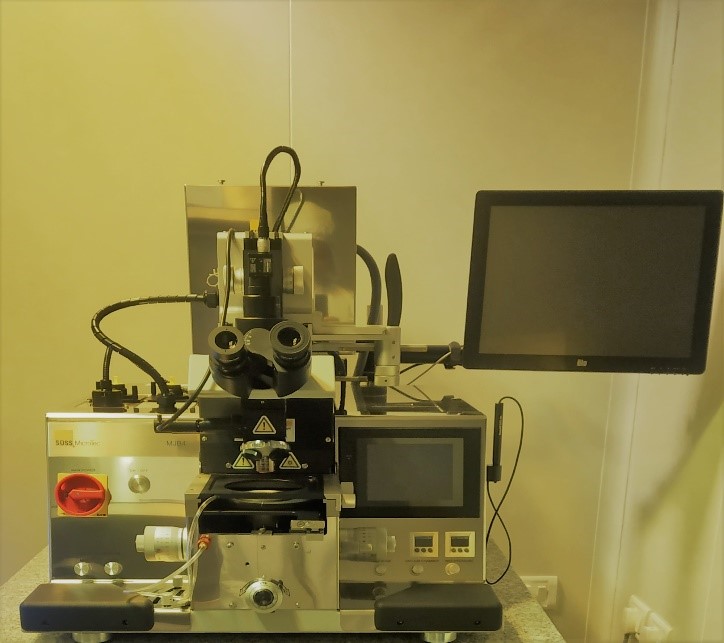

MJB4 from SUSS Technology

Working Condition

It uses the principle of optical lithography

 Technical specification

  • Fast and accurate alignment.
  • Wafer thickness: 0.1mm up to 2.0mm
  • Resolution: 1.5µm.
  • Mask size: 5"x5"
  • UV source: 35OW & 5OO W.


Micron range device fabrication.
