RF/DC Magnetron Sputtering system

Model - Smart Coat 3.0 RF/DC Sputtering System
Make: M/s. Hind Hi Vacuum Systems

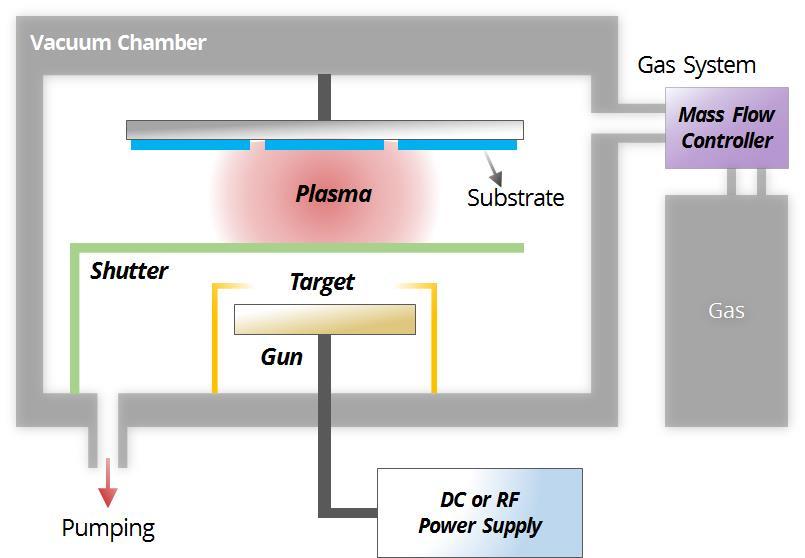

Schematic diagram (Image source:

Working principle:

When a beam of high energetic ions (typically Ar) bombards a target surface, atoms or molecules from that surface sputter out as a plume. If a substrate is simultaneously place in the path of the plume, these particles will deposit on that, forming films. By controlling various parameters, like time of exposure, discharge voltage, distance between the target and substrate, substrate temperature etc., it is possible to deposit thin films of various nature.

DC sputtering is exclusively used for conducting samples, like metals and alloys. RF sputtering is used mainly for dielectrics. To increase the sputtering rate, magnetic field is generated by placing magnets behind the cathode. This folds the trajectories of ions and electrons to increase the collision probability (i.e. rate) and the sputtering yield is increased.

Uniqueness of this system is that there are six substrate slots available for simultaneously depositing films on multiple substrates. Also, it has provision to introduce reactive gases for creating special films. Finally the sample change can be done in vacuum (load lock chamber system). The whole system is evacuated by a turbo for clean environment. It also has differentially variable speed for uniform coating.


There are many uses for this sophisticated instrument, like

  1. Film deposition: especially for routine variety.
  2. Etching: for etching the target surface of semiconductors in one of the cleanest ways, and a high degree of etching anisotropy is required.

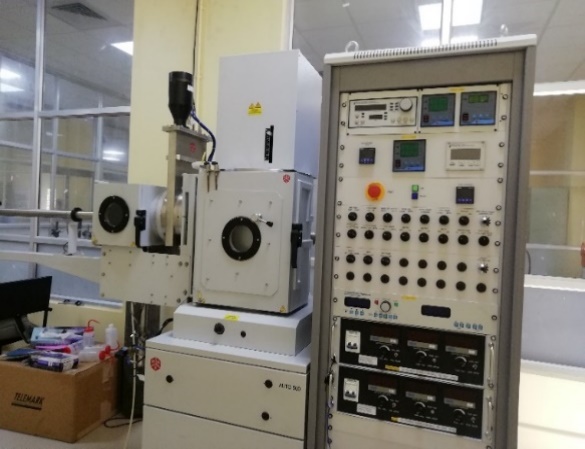

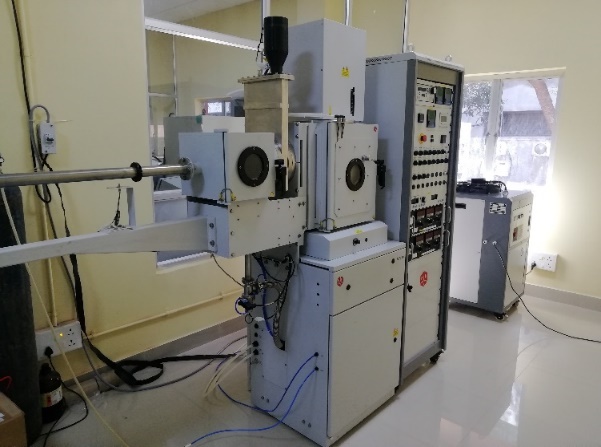

Photographs of the instrument

Prepared Samples:

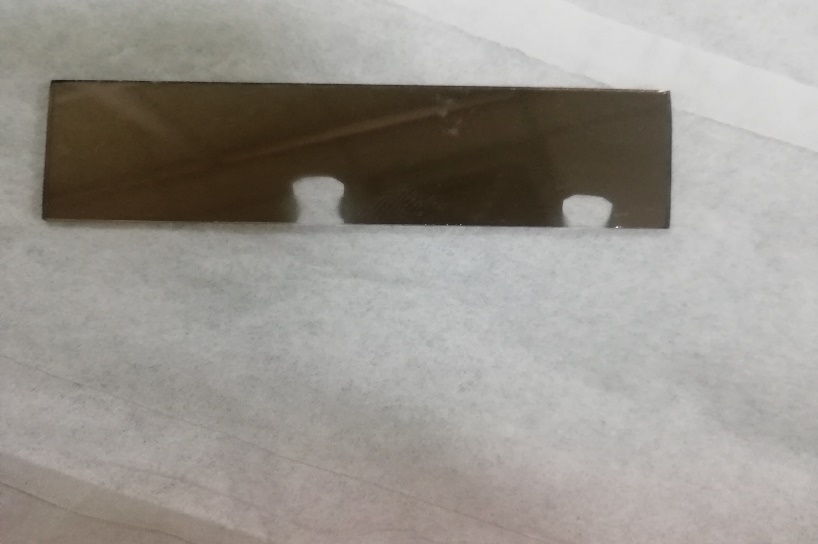

Uniform thin film of aluminium was deposited on a glass surface


Maximum substrate each process, Diameter

6 Nos, 2 inch.

Substrate holder diameter

8 inch

Substrate holder temperature range

Room temp - 800ºC

Source Diameter, max thickness

2 inch, 6mm

Z axis motion

Upto 20mm

Source material

Metals or dielectrics

DC voltage and power

1 kV, 1 kW

RF power (13.56MHz)

RF power (13.56MHz)

Minimum vacuum

5x10-7 mPa

User adjustable magnetron tilt angle


Inline thickness monitor resolution

0.01 or 0.001 nm/s


Process gas and vent gas supply:

Process gas-


Argon in general, Oxygen, Nitrogen, Hydrogen.


1 - 200 sccm


99.999% pure

Vent gas




1.0 bar


Normal commercial grade 'dry'


  • Rs. 3,000/- per 50nM of deposition per sample for academic users
  • Rs. 3,500/- per 50nM of deposition per sample for industrial users
Source(s) and substrate(s) have to be brought by the user.
