Pulsed Laser Deposition (PLD) Unit

This is a Pulsed Excimer Laser based thin film deposition unit. The Excimer laser (Compex Pro made by Coherent Inc.) delivers a maximum of 700 mJ power at the wavelengths of 193 nm (ArF) and 248 nm (KrF) with a repetition rate of 10 Hz. The deposition chamber (Ms. Excel Instruments) is equipped with turbo pump (base 10–7 pressure ~ 10 mbar) and works under various gaseous environment. The substrate can be heated up to 900oC and it has six automated target carousel.

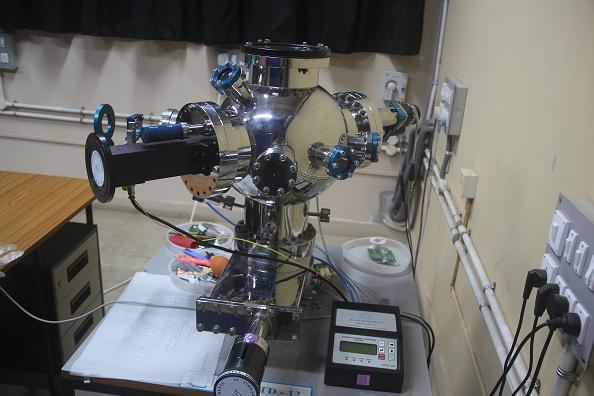

Fig: Pulsed Laser Deposition unit

Pulsed Laser deposition system Upgradation

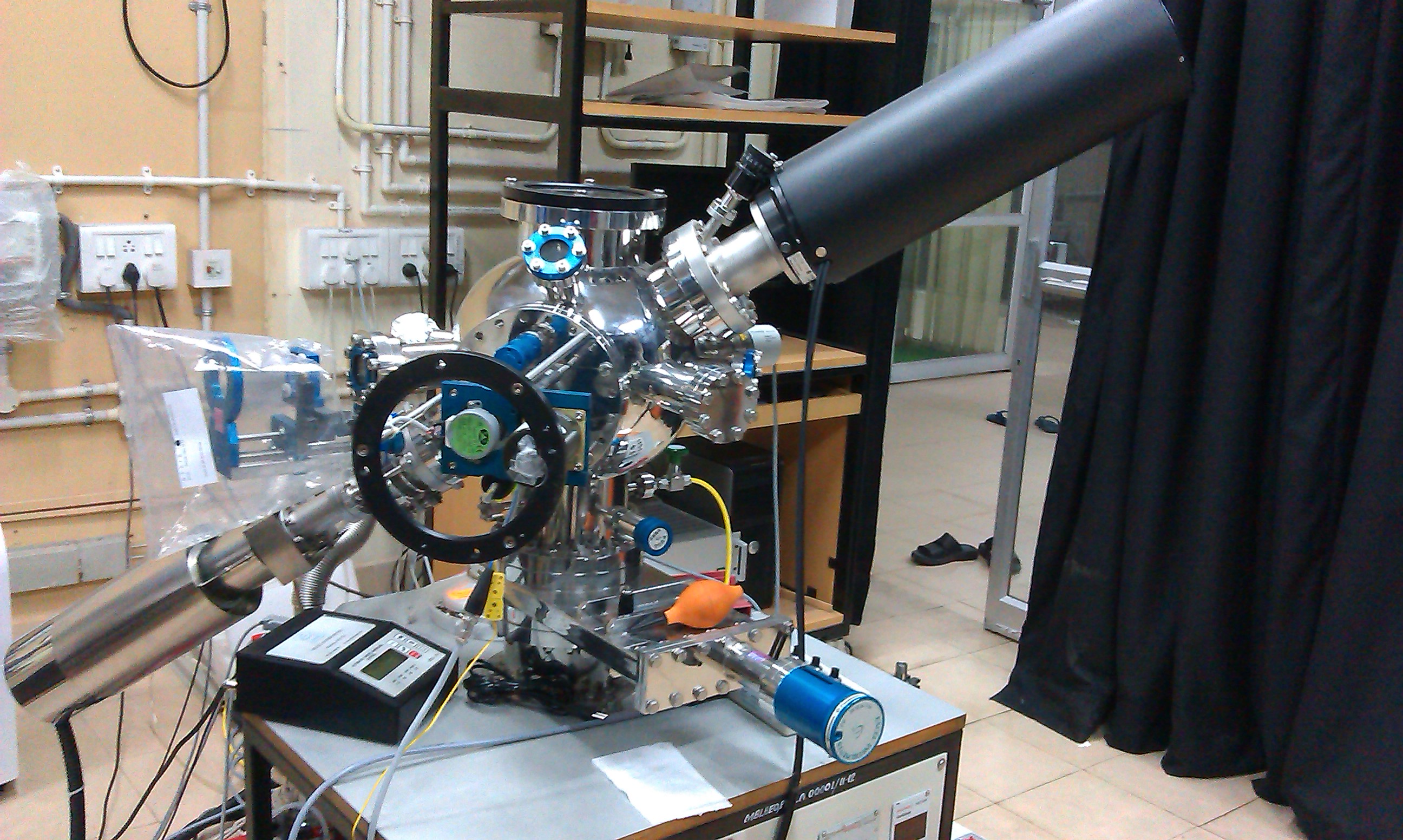

Installation of RHEED Gun in Pulsed Excimer Laser Deposition unit: For in situ analysis of the deposited film by laser ablation.

Instrument model: TorrRHEED TM from STAIB instruments, Germany

Technical Specification

  • The electron source energy ~ 35 KeV
  • Double differential pumping arrangement: To maintain pressure difference between the electron gun and the thin film deposition chamber.
  • RHEED data analysis software: KSA-400 software.
